When I help someone pick a solar water heater capacity, I solar water heater 100 ltr price always start with capacity selection based on household size, because a unit that fits today may not fit tomorrow.
LPD, or Liters Per Day, is the real unit to look at, not just liters, and common sizes run from 100 to 200, 250, 300, and even 500.
The thumb rule most brand experts and buyers follow is 40L of hot water per person daily, since a non-pressurized or pressurized system only heats water to around 55°C compared to an electric geyser hitting 90°C to 100°C, so people naturally use more of it to compensate.
Solar Water Heater 100 Ltr Price
For a family of 5 members, that works out to roughly 200 LPD, while some households settle around 200–220 LPD as a buffer, and I always tell clients to check the capacity reference chart on sites like Solar Clue before locking in a model.
A normal geyser only needs 15L to 25L per person, which is why a fixed-capacity unit bought too small becomes a headache solar water heater 100 ltr price once 5 people start sharing hot water instead of fewer, and I also recommend planning for future household size rather than just today’s headcount, since capacity isn’t easy to expand later.
Pressurized vs Non-Pressurized Solar Water Heaters
Choosing between the two types comes down to your water source. If water flows by gravity from an overhead tank or syntax tank, you need a non-pressurized unit.
If a pressure pump or centralized pumping system feeds the house, common in villas, apartments, and bungalow communities, you need a pressurized unit built with thicker tanks to handle real pressure.
Brands like Supreme Solar even split their range into 4 non-pressurized variants, including ceramic and glass coating options, plus 2 pressurized variants, one of which is the Vajra model, a rare pressurized version that still uses tubes instead of a flat panel.
On the terrace, the cold water inlet connects through a one-way valve to stop backflow, controlled by a wall valve that should only open between 5:00–5:30 AM, before the sun makes the tubes too hot to touch.
There also needs to be a proper height difference the overhead tank should sit at least 6 ft above the unit, since the heater itself stands about solar water heater 100 ltr price 4.5 ft tall and don’t skip the air vent pipe.
Braced with a steel support pipe so heavy wind doesn’t snap it, along with a flat plate GLC option for those wanting a panel-based, non-pressurized setup, and an aux tank fitted when the overhead tank sits unusually high.
Tubular vs Panel (Flat Plate) Models — Comparison & Types

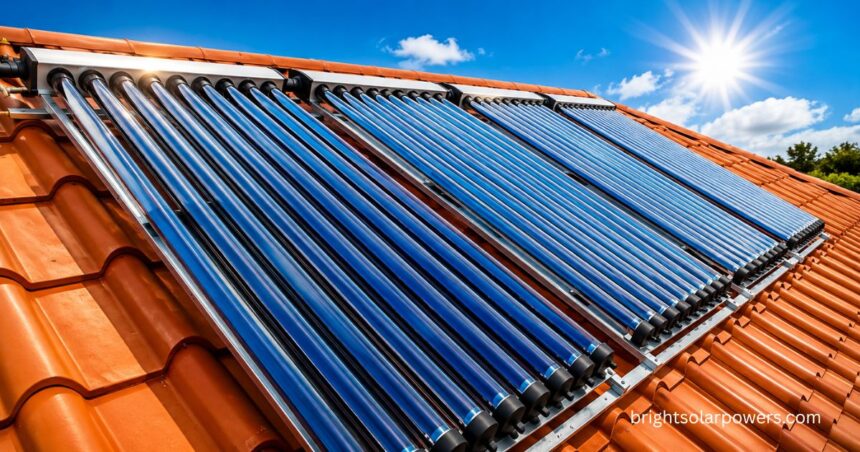

Tubular water heaters, known as ETC or Evacuated Tube Collector models, work differently from panel models.
Each tube uses double-layered glass with an outer glass layer and an inner dark heat-absorbing layer, separated by a vacuum gap that boosts efficiency; a small getter component inside even triggers a chemical reaction to soak up stray air and protect that vacuum for 10 years.
Inside, the tubes connect directly to the tank, and solar water heater 100 ltr price spotting genuine GLC coating is one of the easiest ways to confirm quality.
A typical 200-liter unit carries 16 tubes, each fitted into place using simple washers, and tube replacement is easy—swap out glass tubes for around ₹400–500 per tube, or ₹500–800 to ₹1,000 with a service charge, without touching the rest of the stand
In terms of physical strength, panel models are far sturdier, built from 4mm toughened glass that’s almost unbreakable, while tubular models stay solar water heater 100 ltr price fragile and can crack from physical activity, curious kids, or even monkeys wandering across the terrace though tube removal and swapping stays cheap and quick.
On price, tubular models are usually cheaper, roughly ₹30,000, while panel models run ₹50,000–60,000, about 1.5–2x more for similar performance, and they heat water 3–5°C hotter and 15–20 minutes faster too, even holding up somewhat in cloudy conditions where panel models simply stop working.
For water hardness, look for a ceramic model with ceramic line coating, or a glass coating finish—both fight salt buildup and corrosion, and these are common non-pressurized variants whose availability shifts by region, with Tamil Nadu typically needing stronger 1000 PPM protection compared to Karnataka.
Warranty terms vary a lot: a ceramic model might carry a 5-year warranty, a glass-line-coated tank stretches to a full 10-year warranty, but a flat plate GLC model or basic flat plate panel usually only gets a 1-year warranty, and pressurized versions land somewhere in a 1–5 year warranty range.
If your overhead tank sits in a rooftop room above 10+ ft, an aux model with an auxiliary tank stops the air vent pipe from getting too long.
And for anyone needing pressure resistance without giving up hot water efficiency, the panel model with GLC handles 3 bar pressure with a 1-year warranty, while the unusual pressurized tubular model, the Vajra model, manages solar water heater 100 ltr price pump pressure.
A 2-year warranty, because heat, not water, moves through the tubes and once these systems age out, scrap buyers still pay for the resale value of old panel models, something tubular models rarely offer thanks to their lower durability over time.
Price
Real-world numbers help more than theory. A 200-liter V-Guard solar water heater, a tubular ETC unit, cost close to ₹23,000 at purchase, while similar comparable capacity models elsewhere sit near ₹30,000 for tubular and ₹50,000–60,000 for a panel model, roughly 1.5–2x the tubular price.
Tube replacement stays cheap regardless of brand, at ₹400–500 for the part or ₹500–800 to ₹1,000 once you add a service charge. Even at the smaller 100L size, these numbers give a fair baseline before you start comparing quotes.
Selection Example / Case Study
Picture a 5-member household with no pressure pump, drawing water from an overhead tank sitting 7 ft above the terrace—that’s adequate height for gravity flow.
The math is simple: 5 × 40L equals 200 LPD, or about 200L of need each day, which points straight to a non-pressurized system.
Weighing solar water heater 100 ltr price cost and efficiency against a panel, the final selection here is a tubular model, since it costs less and heats faster without sacrificing performance.
How to Buy / Website Navigation
Buying online is straightforward once you know the path. On solarclue.com, head to Solar Appliances, then Solar Water Heater, pick your location, and use the left-side filters to narrow down capacity, say around 200–220 LPD, before choosing a brand like Supreme and deciding between pressurized or non-pressurized as your application type.
Each model listing then shows full specifications price, warranty, water hardness handling, and tank thickness requirements so you know exactly what you’re getting.
Keep in mind that product availability shifts with regional water hardness, so the same model available in one city may not show up in another.
Installation Process
Installation follows a clear sequence. First, the stand goes up using nuts and bolts, then the water tank sits on top, checked carefully for alignment solar water heater 100 ltr price before it’s bolted down.
The tubes push into the base with washers, and the cold water inlet pipe connects from the overhead tank through a one-way valve, controlled by a wall valve.
Finally, the outlet valve handles the hot water side, and the air vent pipe gets fitted with a steel support pipe to guard against wind damage.
Working Mechanism
Once cold water enters through the one-way valve, it fills the tubes and starts absorbing sunlight. As it heats, its density drops, so it rises naturally and pulls cooler water down behind it—this is natural circulation, and after a few hours of sunlight, the whole tank turns hot.
A thick insulation layer wrapped around the tank limits heat loss overnight to just 2–4°C, which matters because most people heat water during the day but use it the next morning.
Hot water then leaves through the top outlet, runs to the bathrooms, and passes a shutoff valve along the way.
Backup Heater Option
During winter or rainy season, insufficient sunlight can leave the tank lukewarm, and that’s where an electric heating coil comes in, fitted by a dealer or installer rather than pre-installed.
The catch is that this in-tank backup coil has to heat the whole tank capacity often 150 200L—which drives up energy consumption fast.
For small households with just 1–2 people, expert solar water heater 100 ltr price advice usually favors skipping the built-in coil and going for a small electric water heater instead, since it’s simply more energy-efficient for that tank size.
Maintenance
Tubular models, or ETC systems, stay low-maintenance by design if tube damage happens, tube replacement fixes just that one part instead of shutting down the whole unit.
Older copper-panel models are worse off, since internal tubing collects salt residue and needs regular maintenance far more often.
If you do need cleaning, do it before sunrise or after 7 PM, since working on the tubes during the day risks upsetting the tube temperature balance.
Is 100 LTR enough for a family of 3?
For a family of 3, a 100 LTR unit is workable but tight, since 3 people need close to 120L at the standard 40L per day rule. If you expect household solar water heater 100 ltr price growth, it makes sense to size up toward 150–200 LPD now rather than facing an early upgrade later.
FAQS About Solar Water Heater 100 Ltr Price
What is the price range of a 100-litre solar water heater?
A 100-litre solar water heater typically costs between ₹13,000 and ₹25,000, depending on the ETC or FPC technology and brand chosen.
How much does a Nuetech 100-litre solar water heater cost?
Nuetech’s 100 L model starts around ₹13,000, with premium ETC/FPC variants going up to ₹1,09,990 based on features and capacity.
What is the price of a 50 litre solar water heater?
A 50-litre solar water heater generally ranges from ₹9,000 to ₹25,000, varying by material quality, portability, and supplier.
What does a Tata 150-litre solar water heater cost?
Based on comparable Tata BP pricing, a 150-litre model is estimated at ₹22,000 to ₹35,000+, making it a dependable pick for a family of four.
Why do solar water heater prices vary so much?
Prices depend on capacity (litres), collector type (ETC vs FPC), tank material (stainless steel, GI-coated), brand reputation, and installation location.
