I still remember the first time I solar water heating system stood on a friend’s rooftop and watched steam rise gently off a storage tank after a cloudy morning turned bright.
That single moment made me realize how much energy we waste every day just to get hot water for a shower. A solar water heating system flips that habit on its head, using nothing but sunlight and simple components to keep a household running.

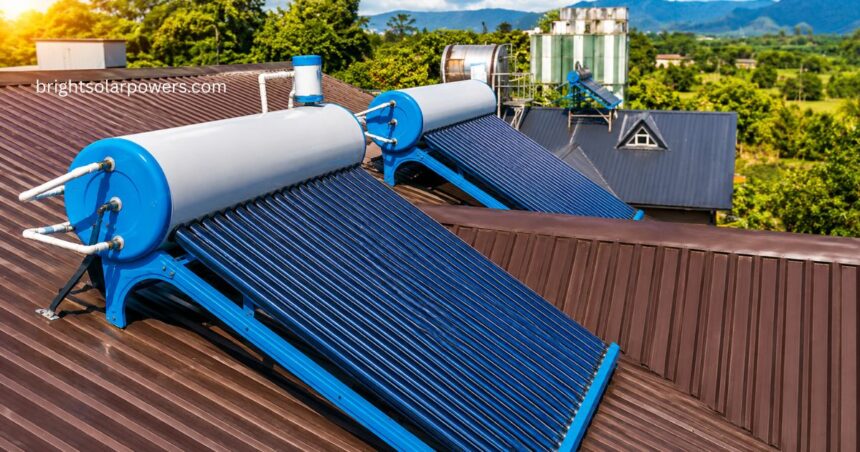

solar water heating system
Most homes still rely on grid energy to run a water heating system, but a solar water heater takes a completely different application of solar energy.
Instead of pulling electricity from the wall, this cost effective setup uses solar collectors, an inlet pipe, and an outlet pipe working together with a sensor and a circulating pump system to move water through the direction the sun travels.
Once you understand this system, you start to see it less like a water-based space heater and more like a smart domestic use tool that quietly handles the heating of water for the whole home.
Think about the numbers for a second: a well-built unit can save close to 1600 units of electricity annually, and that adds up fast once you factor in positioning on the roof, proper heat exchange, and the natural heat transfer that happens through gravity.
The sun radiation that hits the roof gets captured and turned into usable heat, and the passing water inside the pipes only leaves once its water temperature matches what the household needs.
Whether it serves commercial use or a single-family home, the goal stays the same replace traditional water heaters with something powered entirely by the sun.
What is a solar water heater?
A solar water heater is built around one main part: the solar collector. Sunlight lands on the roof, passes through a transparent sheet known as the glass cover, and reaches a dark colored metal plate called the absorber plate, which sits there specifically to absorb maximum solar radiation.
That plate converts solar energy into heat, transfers it into the pipes, and sends the warmed water toward a storage tank that stays insulated so it remains hot long after the sun goes down.
Every part plays its own role in reducing heat loss and keeping the whole unit efficient.
The connecting pipes carry water between the collector and tank while staying properly insulated to reduce heat loss along the way, and a supporting structure holds everything at the correct angle for the best orientation toward the sun, giving it stability during rough weather conditions.
Wind, rain, and dust never really touch the absorber plate because the glass protects it, and the cold water inlet sits near the bottom of the tank so solar water heating system fresh water can move easily into the solar collector for heating.
By the time evening arrives, the hot water outlet delivers warm water straight to bathrooms and kitchens, giving easy access whenever someone needs it.
Cold water naturally settles near the bottom while heated water rises to the top of the tank, and this simple layering keeps the unit working smoothly even after sunset.
It really is a compact package of practical engineering hiding under an ordinary-looking box on the roof.
How does a solar water heater work?
There are two broad families here: active solar water heaters and passive solar water heaters, and both aim to deliver sufficient hot water for daily home hot water requirements.
Active solar water heaters rely on a pump to move water from the absorbers into the home, and this setup suits colder climates well because the storage tanks stay indoors to avoid freezing.
Within that category, one version runs as passive direct systems, where water heats directly inside glass tubes or metal tubes before reaching your faucets and showerheads, while another version, the active indirect system, warms a heat transfer fluid such as propylene glycol inside a closed loop and passes that heat along through a heat exchanger, though some heat naturally gets lost in the process.
Passive solar water heaters skip the pump entirely and instead let convection do the work, since hotter water naturally rises while colder water sinks to the lower part of the system.
This design needs no extra equipment, which keeps it cheaper than active ones, and it splits into two familiar types: integral collector solar water heaters, which use a transparent storage tank and suit families who use plenty of hot water across the day and evening.
Passive thermosiphon systems, which rely on metal flat plate collectors to warm tiny batches of water often around 40 gallons inside a batch collector sitting at the top of the roof, ready to rush down once someone turns on the hot water tap.
Many homes also keep a tankless heater, solar water heating system running on gas or electric, as a backup energy source for these passive systems.
Picture how this actually happens: sunlight falls onto the solar collector, passes through the transparent glass cover, and reaches an absorber plate that’s painted black and sealed inside a weatherproofed box to trap heat.
Because the plate stays dark colored, its temperature rises quickly, and through simple conduction, that heat moves into the water sitting in the tube.
As the water heats up, it density decreases, so hot water naturally rises while cold water flows down this natural movement is the famous thermosiphon effect, and it needs no circulating pumps at all.
From there, the overhead tank sends cold water into the lower part of the storage tank, which then runs through the number of tubes in the solar collector, and once heated, that water circulates hot water back up while cold water replaces it in the tube, continuing this cycle as long as the sky stays clear, working best around midday.
The hot water eventually reaches the service area through the outlet, and tank insulation helps retain heat for several hours, meaning warm water stays available during the night and early morning even though the heating process stops after sunset.
This whole process repeats automatically, day after day, requiring nothing more than sunlight, gravity, and good design no pump, no electric switch, nothing required beyond what nature already provides for both household use and industrial use.
What are the benefits of solar water heaters?
The primary advantage of owning a solar water heater comes down to becoming self-sufficient with your energy consumption requirements.
Once there’s enough sunlight, the home stops depending on outside power just to heat water, and monthly heating expenditures start to diminish almost immediately.
It’s not a flawless setup keeping backup warmers nearby still makes sense but that extra autonomy pays off through real saves money over the long term.
Durability matters here too, since these units typically need little maintenance and can run for close to 20 years without major issues.
They usually cost less than other domestic installations, keep working through sudden power cuts, and help households by lowering carbon footprints over time. None of this feels like a perfect solution on its own, yet the combined savings make it one of the more beneficial upgrades a home can make.
There’s also a nice bonus for anyone who already owns existing solar power: it’s simple to adapt a solar panel system into a working solar water heater . That flexibility means the system grows naturally alongside whatever renewable setup a home already has in place.
How effective are solar water heaters?
Solar technology has reached a point where almost any solar hardware can help generate heat, and that makes solar heating both environmentally friendly and genuinely cost-effective.
When it comes to price, solar water heating system this option now sits right alongside or even below other heating options on the market. The efficiency of the collector and the overall system design decide how much output a solar hot water system actually produces.
Solar power stays available all year, and it proves more reliable than wind power in most areas, though it helps to keep a backup heating system ready during cloudier months when the sun feels a bit darker than usual.
Homes that get this installed typically solar water heating system see water heating bills drop by 60%-70%, which is a number worth repeating to anyone still on the fence.
Because the sun’s energy stays free, households also stay protected against future price hikes and shortages, and that alone makes the advantages of this renewable energy source hard to ignore given how far the solar technology has progressed.
How to select the right solar water heater?
Different environments call for different types of solar water heating systems, so selecting the right one starts with understanding temperatures in your area.
Natural systems perform well anywhere temperatures rarely fall below freezing, while direct active systems hold up better in colder areas thanks to their resistant design against freezing damage.
Pay close attention to the absorber plate material, the glass plate quality, the box’s material, and the coating used on the absorbent, since these characteristics shape long-term performance.
Anyone chasing more from their solar heating system should consider an investment in a circulation system that operates quietly in the background, since that setup can even redirect heating fluid to warm a swimming pool or spa instead of just warm water for the tap.
Integral collector storage systems can weigh more than 400 pounds, so double-check that your roof can handle the weight before committing to one.
It also helps to think honestly about how much light your home gets daily, how much hot water the household actually uses, your budget, and where the supply pipes will run because these small details determine whether the solar water heating system whole setup performs the way it should.
FAQS About Solar Water Heating System
Can you heat water with solar?
Yes, a solar water heater uses sunlight through solar collectors to heat water naturally. This clean technology reduces electricity bills while providing reliable hot water daily.
How many solar panels do I need to heat water?
Most homes need just 1 to 2 solar collectors to run an efficient solar water heater system. A 100 litre solar water heater usually works well with a single collector for small families.
What is the cost of 100 Litre solar water heater for home?
A 100 litre solar water heater typically costs between ₹15,000 and ₹25,000 depending on brand and quality. This affordable option delivers long-term savings and consistent hot water supply.
What is the cost of a solar water heater?
The cost of a solar water heater ranges from ₹15,000 to ₹50,000 based on capacity and collector type. Choosing the right size ensures better efficiency and lasting value for your home.
